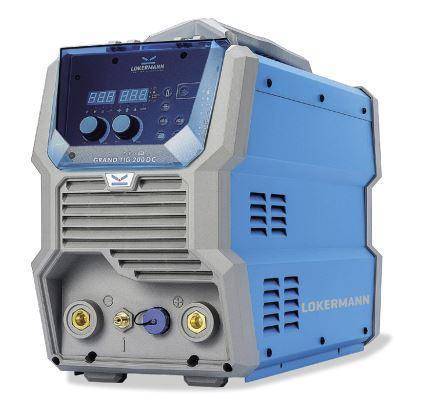

Generateur GRANDTIG 200 DC Lokermann

Lokermann - Generateur GRANDTIG 200 DC

INPUT VOLTAGE 230V
INPUT FREQUENCY 50/60 HZ
INPUT PHASE 1
RATED INPUT POWER* 5,5KW-7,76KW
RATED INPUT CURRENT (I1MAX)* 32A-45A
EFFECTIVE INPUT CURRENT (I1EFF)* 19A-20A
DUTY CYCLE 20% (10 MIN 40°C)* 200A
DUTY CYCLE 60% (10 MIN 40°C)* 125A-115A
DUTY CYCLE 100% (10 MIN 40°C)* 100A-90A
NO LOAD VOLTAGE 77V
CURRENT RANGE 10 A/200A
NET WEIGHT 7,7KG
DIMENSIONS 520X185X305MM
PROTECTION CLASS IP23
INSULATION CLASS H
POWER FACTOR 0,75
TIG TRIGGER CONNECTORS 12 PINS
*(TIG/MMA)
