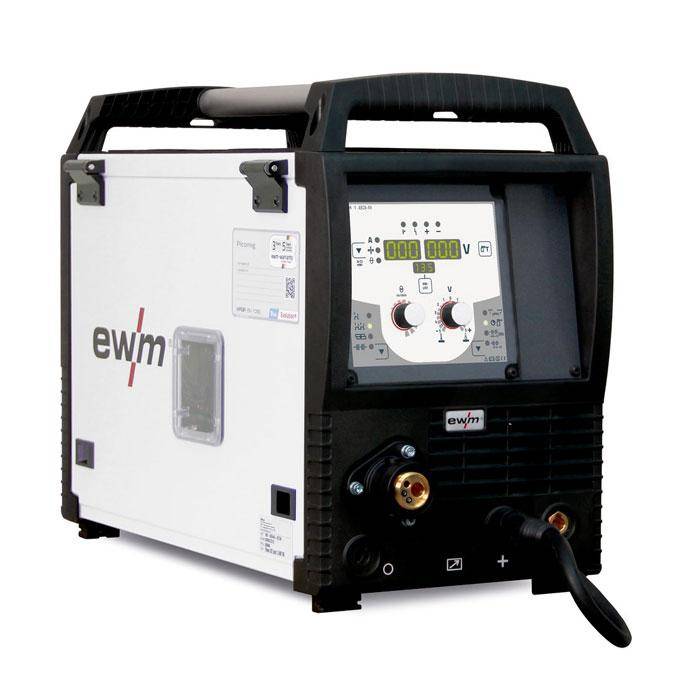

Generateur PICOMIG 355 SYNERGIC TKM EWM

EWM - Generateur PICOMIG 355 SYNERGIC TKM

Setting range for welding current 5 A - 350 A
Duty cycle at ambient temperature 40 °C
40 % 350 A
60 % 300 A
100 % 270 A
Open circuit voltage 79 V
Mains frequency 50 Hz / 60 Hz
Max. connected load 13.9 kVA 10.6 kVA 15 kVA
Recommended generator power 18.8 kVA 14.3 kVA 20.3 kVA
cos φ 0.99
Efficiency 88 %
Spool diameter 1 mm - 1.2 mm , - 300 mm
Drive rolls 4
Wire speed 1 m/min - 20 m/min
Dimensions machine, LxWxH in mm 636 x 298 x 482
Weight, machine 33.4 kg
Protection classification IP 23
Insulation class F
Torch connection Euro torch connector
Standards IEC 60 974-1; -5; -10 / S-Safety sign / EMC class A
